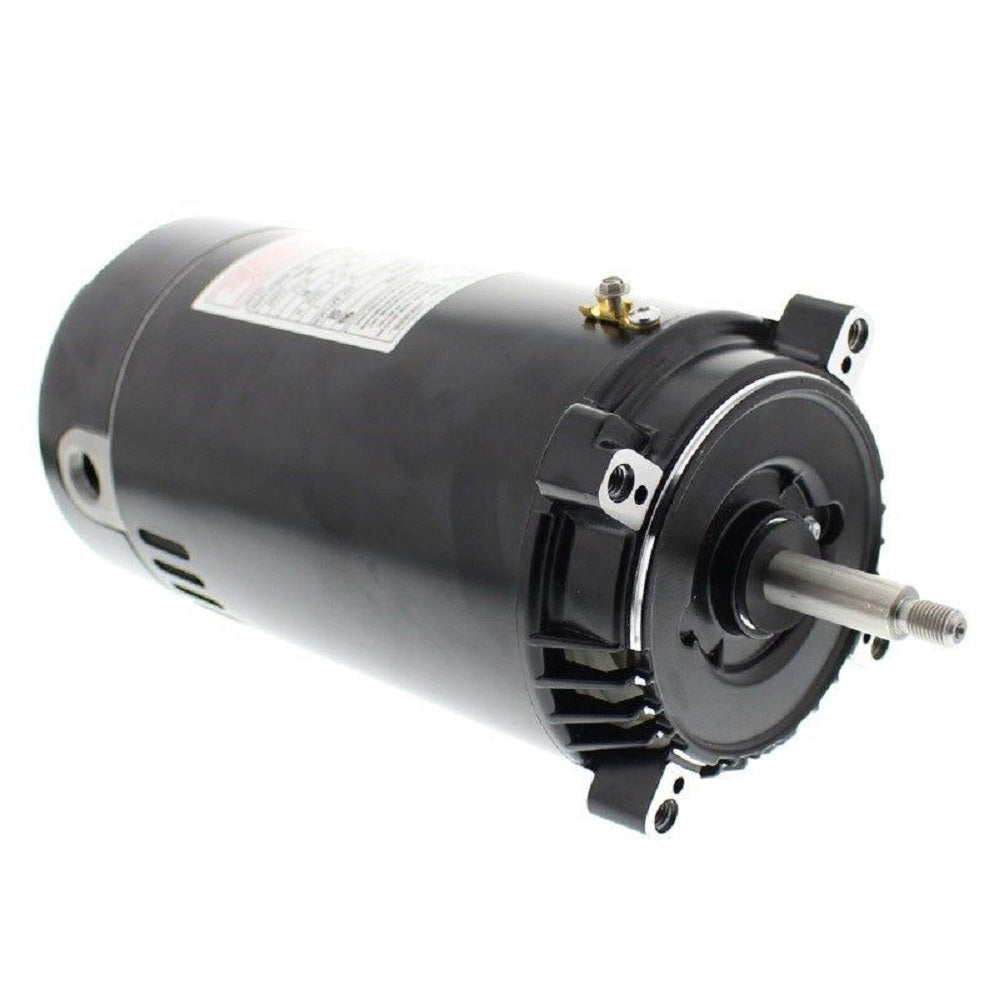

A.O. Smith UST1102 1HP 115/230V NEMA C-Face Pool Filter Motor
A.O. Smith UST1102 1HP 115/230V NEMA C-Face Pool Filter Motor
A.O. Smith UST1102 1HP 115/230V NEMA C-Face Pool Filter Motor

A.O. Smith UST1102 1HP 115/230V NEMA C-Face Pool Filter Motor

Shipping calculated at checkout.

1 HP - C-Face - 56J - 115/230V - Threaded - Up Rate - 1.1 SFTwo Compartment NEMA C-Face Pool Filter Motors - Single SpeedLow Service Factor (UP Rated)

Features:
  • Auto Protector
  • Open Dripproof
  • Sealed Ball Bearings
  • 1081 Design
  • 304 Brg. Shaft End
  • Capacitor Start and Capacitor Start-Capacitor Run
  • NEMA 56C Face Mount
  • Rotation: CCW Pump End
  • Sealed Switch Design
  • 50 C Ambient
  • 60 Hz
  • 303 Stainless Shaft (56J & 56C)
Specifications:
  • HP: 1
  • RPM: 3450
  • Volts: 115/230
  • Max. Amps: 15.0/7.5
  • Service Factor: 1.1
  • THP: 1.1
  • Frame: 56J
  • Stock Number: UST1102
  • Shaft: Thd.
  • Approx. "AG": 11
