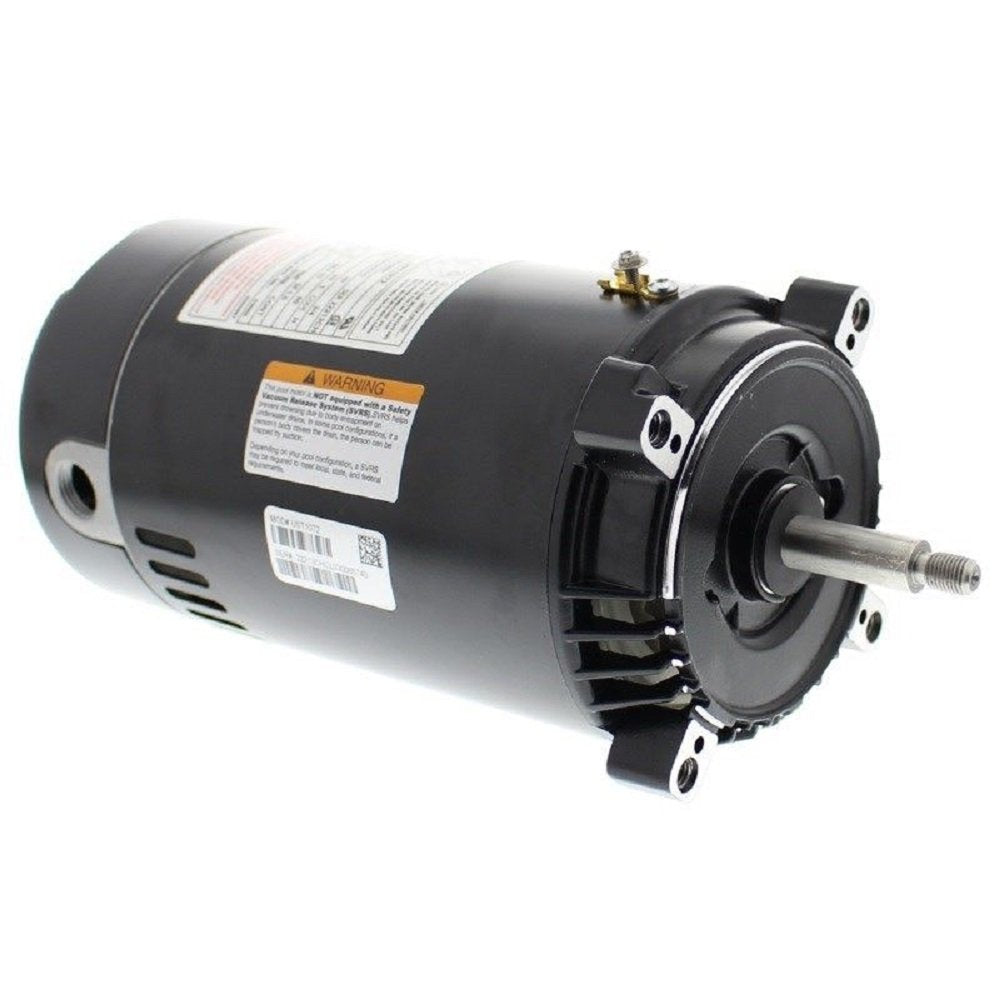

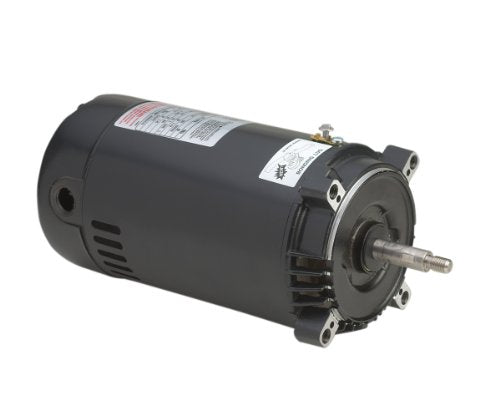

A.O. Smith UST1072 Two Compartment NEMA C-Face Pool Filter 0.75HP 115/230V Motor
A.O. Smith UST1072 Two Compartment NEMA C-Face Pool Filter 0.75HP 115/230V Motor
A.O. Smith UST1072 Two Compartment NEMA C-Face Pool Filter 0.75HP 115/230V Motor

A.O. Smith UST1072 Two Compartment NEMA C-Face Pool Filter 0.75HP 115/230V Motor

Shipping calculated at checkout.

3/4 HP - C-Face - 56J - 115/230V - Threaded - Up Rate - 1.0 SFTwo Compartment NEMA C-Face Pool Filter Motors - Single SpeedLow Service Factor (UP Rated)

Features:
  • Auto Protector
  • Open Dripproof
  • Sealed Ball Bearings
  • 1081 Design
  • 304 Brg. Shaft End
  • Capacitor Start and Capacitor Start-Capacitor Run
  • NEMA 56C Face Mount
  • Rotation: CCW Pump End
  • Sealed Switch Design
  • 50 C Ambient
  • 60 Hz
  • 303 Stainless Shaft (56J & 56C)
Specifications:
  • HP: 3/4
  • RPM: 3450
  • Volts: 115/230
  • Max. Amps: 11.0/5.5
  • Service Factor: 1.0
  • THP: .75
  • Frame: 56J
  • Stock Number: UST1072
  • Approx. Shaft: Thd.
  • "AG": 10-5/8
