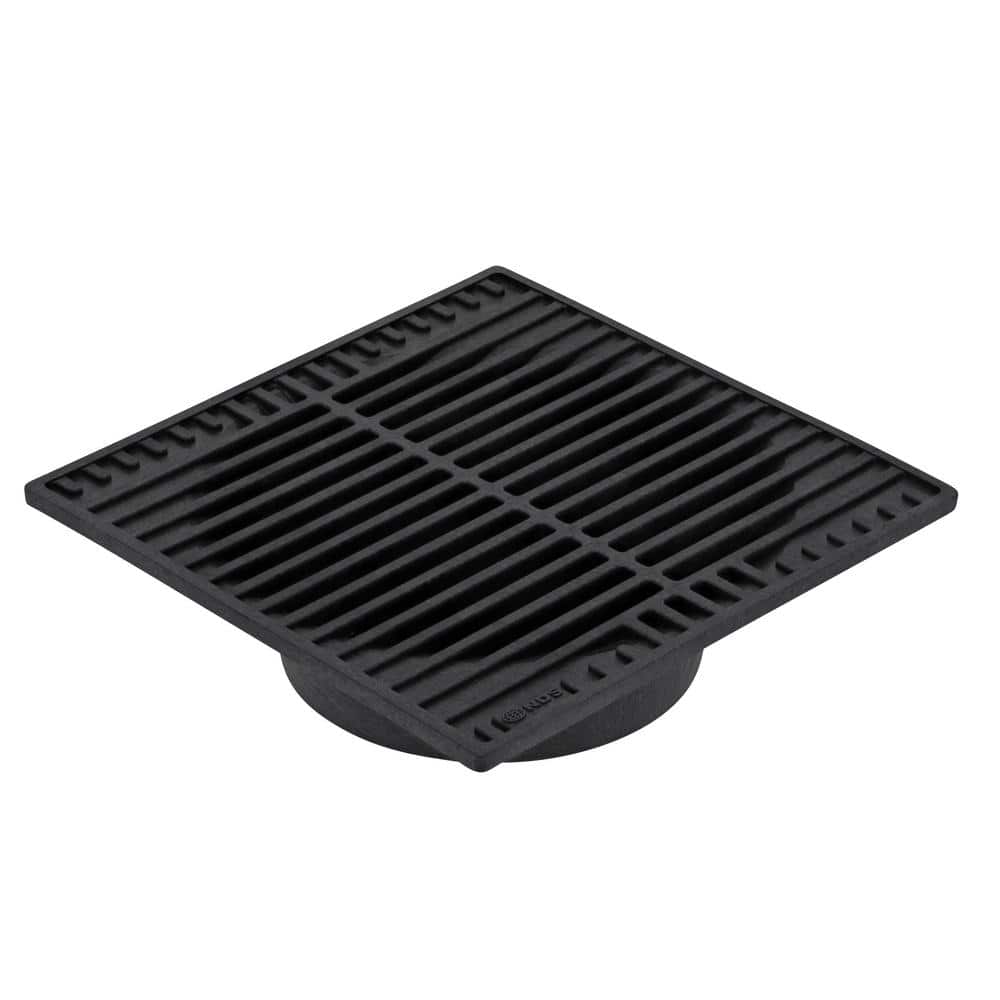

9 in. Plastic Square Drainage Grate in Black
9 in. Plastic Square Drainage Grate in Black
Features:- Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
- Ideal for draining moderate water flows from lawns, landscaped areas, patios, walkways, and under downspouts
- Fits the Spee-D Catch Basin Drain, 6 in. Sewer and Drain Pipe & Fittings, 6 in. Single-Wall Corrugated Pipe, 6 in. Sch. 40 Pipe
- 28.4 sq. in. open surface area. 87 GPM flow rate
- 87 GPM flow rate
- Rated for NDS Class A loads (up to 60 psi) when properly installed-recommended for pedestrians, bicycles, and wheelchair traffic; ADA compliant
- Grate is 2-1/2 in. high; top is 8-7/8 in. square; grate openings are 5/16 in. wide
- 9 in. Square Drain Grates are available in a variety of colors
- Comes with one 9 in. Square Grate
- Works with connected drain pipe to capture and convey excess surface water for proper release downstream

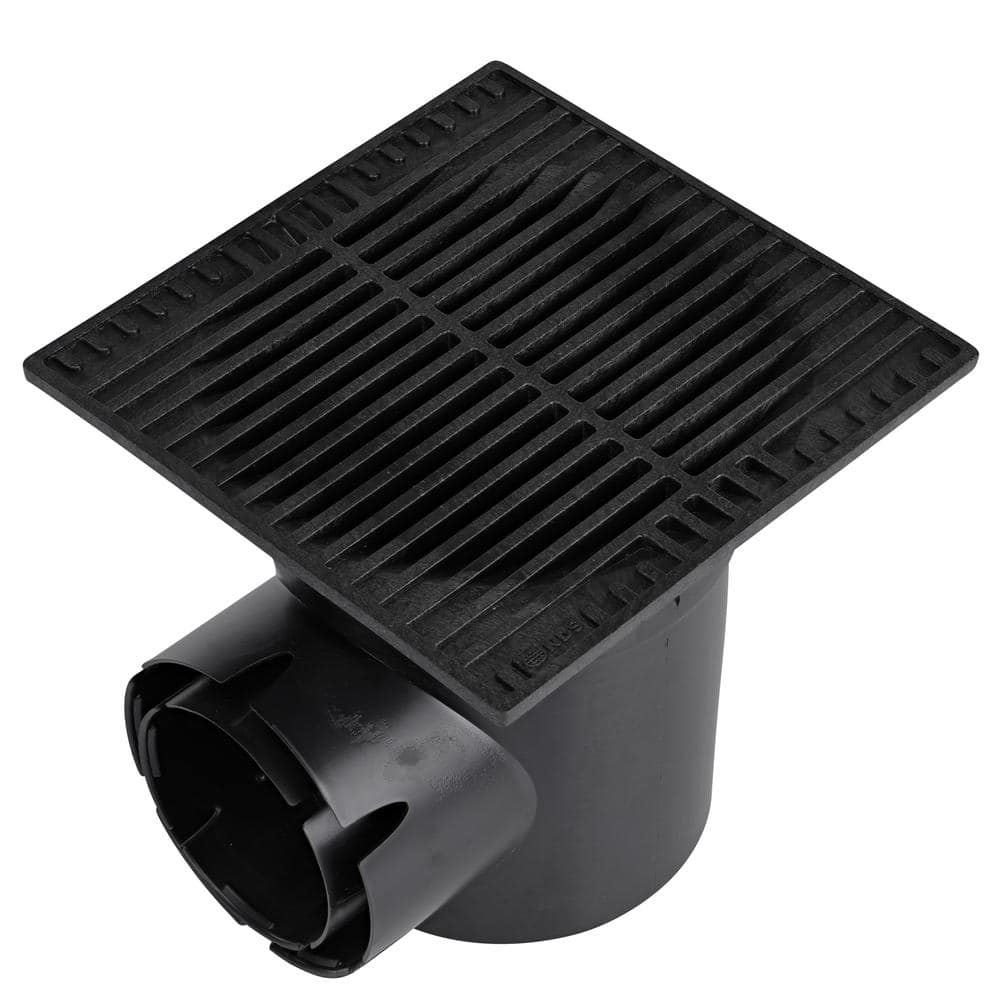

- Place on top of drain pipe, drain fitting, or Spee-D Basin for a soil-tight fit
- High-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

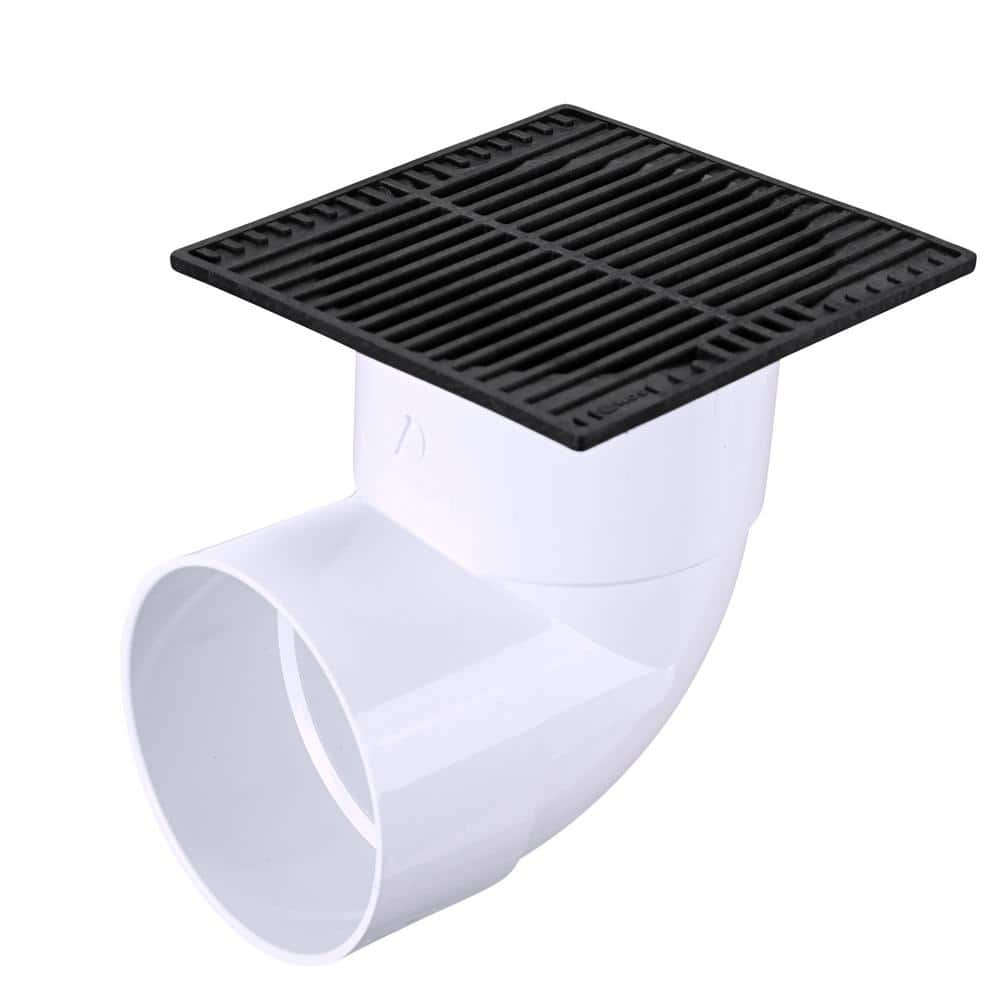

- Use sewer and drain fittings when you need to make turns from the drain grate to drain pipe
- Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
- Use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
- Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
- Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right
- Landscapes Compatibility Chart
