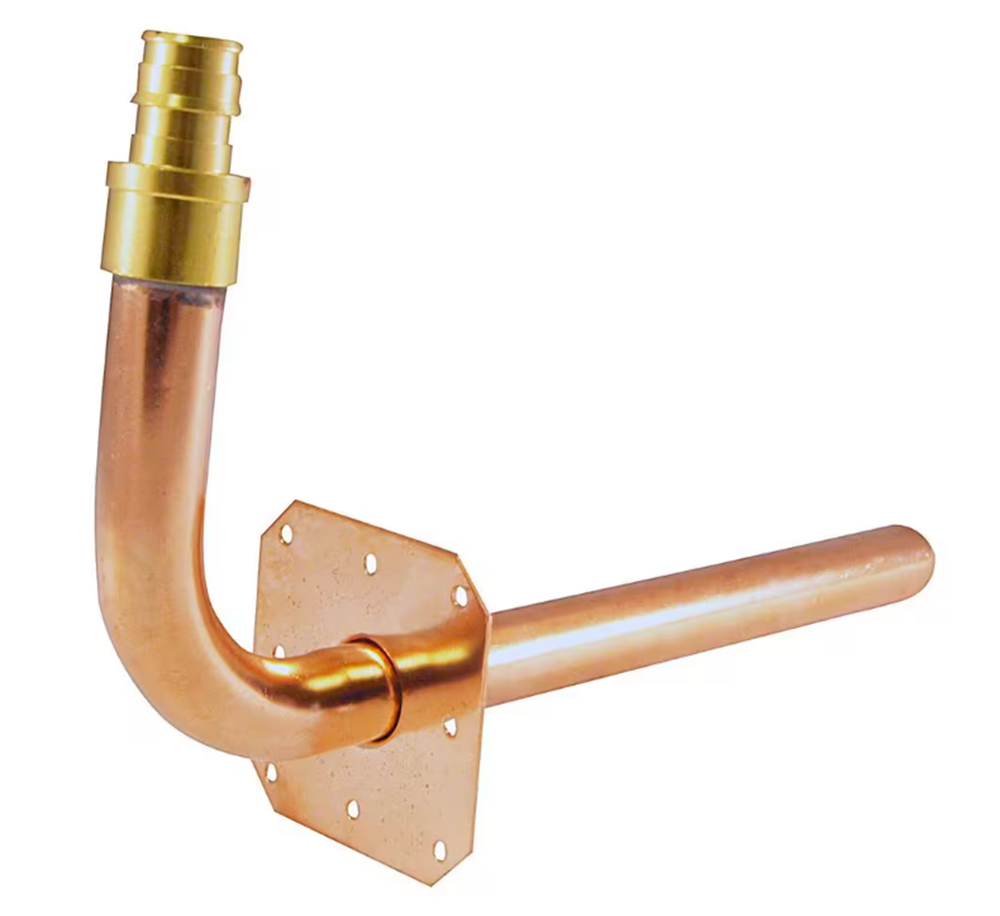

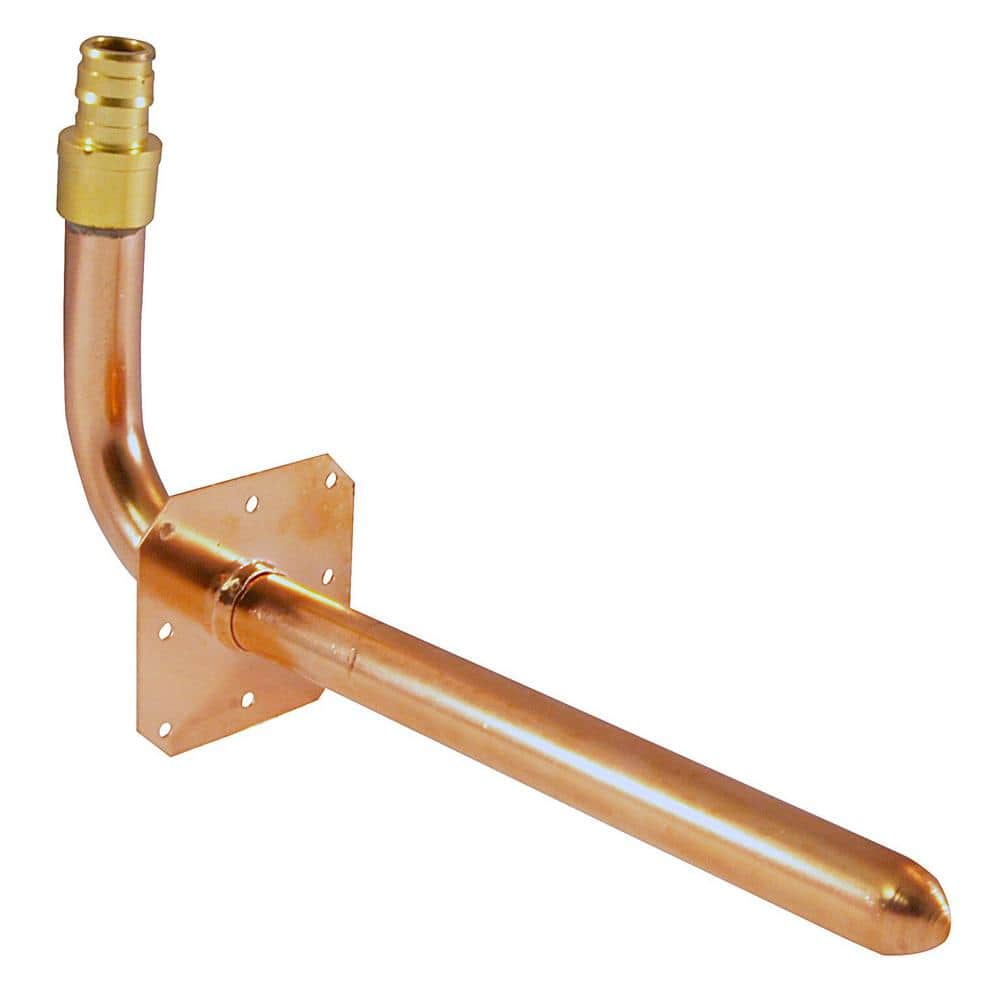

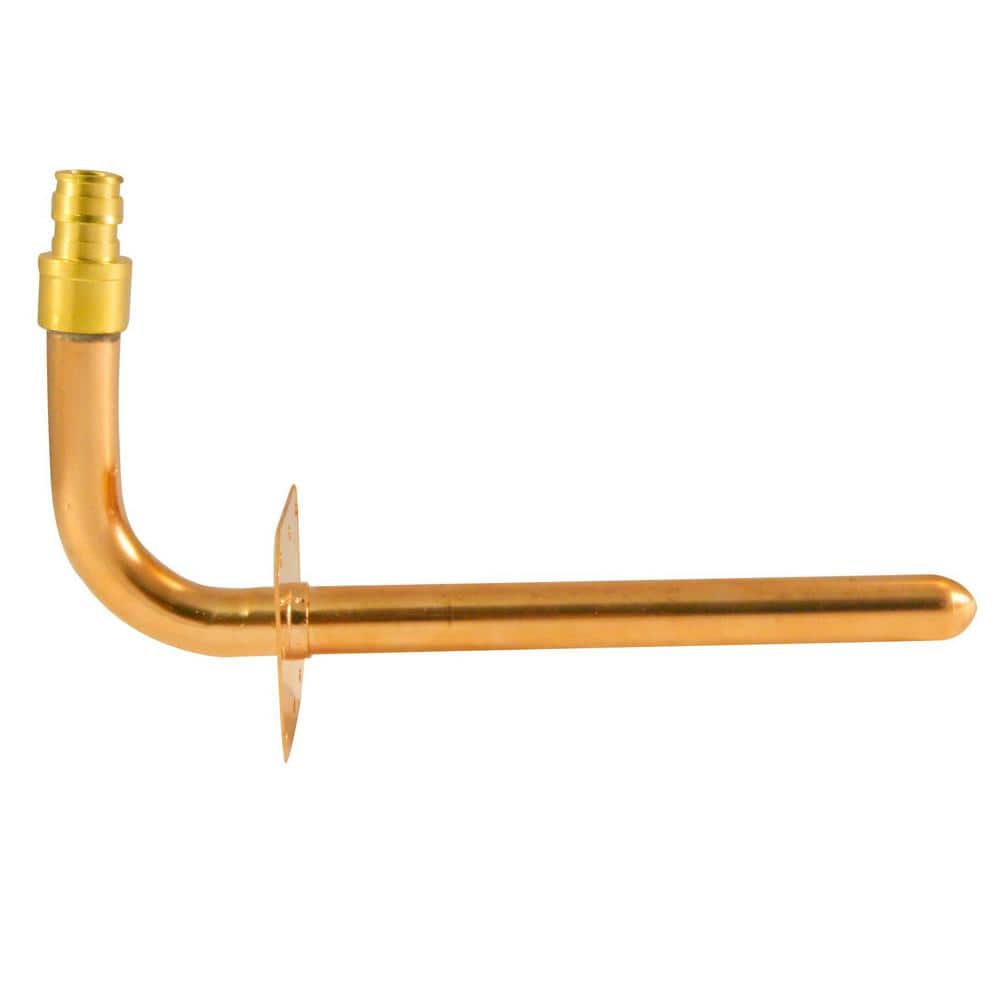

8 in. x 1/2 in. Copper PEX-A Expansion Barb Stub-Out 90-Degree Elbow with Flange
8 in. x 1/2 in. Copper PEX-A Expansion Barb Stub-Out 90-Degree Elbow with Flange
8 in. x 1/2 in. Copper PEX-A Expansion Barb Stub-Out 90-Degree Elbow with Flange

8 in. x 1/2 in. Copper PEX-A Expansion Barb Stub-Out 90-Degree Elbow with Flange

Shipping calculated at checkout.

The ApolloPEX 8 in. x 1/2 in. Copper PEX-A Barb Stub-Out 90 degree Elbow with Flange provides ultimate stability for stub-outs for stop valve connections to plumbing fixtures. The integrated mounting flange allows for the simple and secure installation of stub outs. The ApolloPEX 8 in. x 1/2 in. Copper PEX-A Barb Stub-Out 90 degree Elbow with Flange, secured to studs, floor joists, ceiling joists or any number of structural components, is an extremely versatile product. The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation

Features:
  • Larger internal diameter of Apollo ExpansionPEX fittings results in a 25% greater flow rate within the system
  • Constructed of high quality copper for superior reliability and strength
  • Cold-expansion tool (sold separately) is required for installation
  • Meets or exceeds ASTM F1960 standard
  • Meets UPC, IPC and cUPC standard
  • Must secured in place using Apollo ExpansionPEX sleeves or other PEX-A expansion sleeves/rings
  • NSF listed
  • Rated to 200 degree F and 200 psi
  • Item is not compatible with PEXb pipe, crimp-style (ASTM 1807) or pinch clamp (ASTM F2098) piping systems
