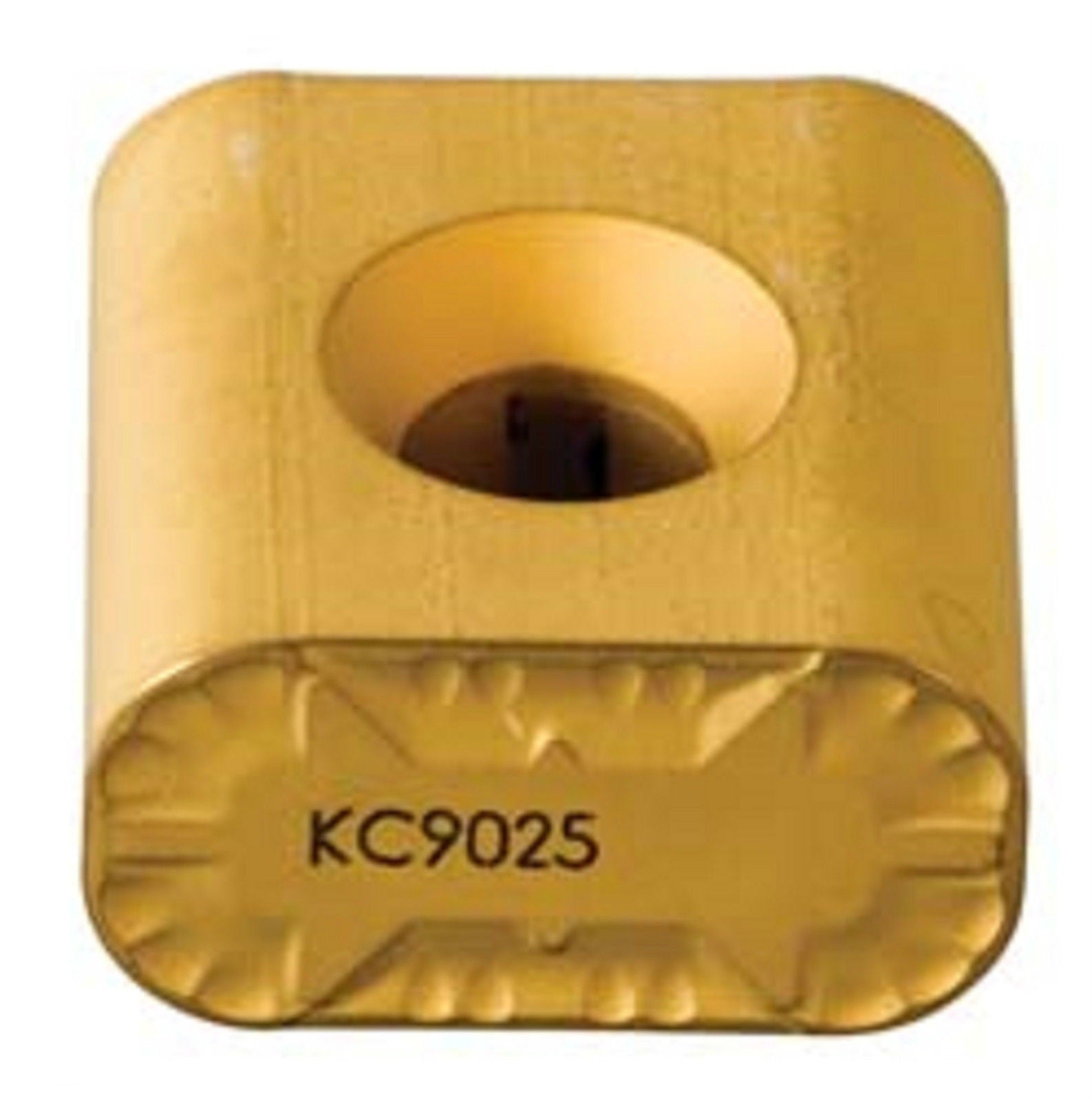

Kennametal LNUX191940-RRP - Railroard Reprofiling Carbide LNUX Insert

Kennametal LNUX191940-RRP - Railroard Reprofiling Carbide LNUX Insert

  • $41.45
    Unit price per
Shipping calculated at checkout.


single Kennametal brand Railroard Reprofiling Carbide LNUX Insert.

Specifications
  • Material: Carbide
  • Insert Style: LNUX
  • Insert Size: 191940
  • Manufacturer's Grade: KC9125
  • Chipbreaker: RP
  • Shape: Rectangle
  • Width (Decimal Inch): 0.7480
  • Thickness (mm): 10.00
  • Corner Radius (Inch): 5/32
  • Corner Radius (mm): 3.97
  • Corner Radius (Decimal Inch): 0.1563
  • Relief Angle ( ): 0
  • Thickness (Decimal Inch): 0.3937
  • Width (mm): 19.00
  • Hole Diameter (mm): 6.35
  • Hole Diameter (Decimal Inch): 0.2500
  • Material Grade: C2/C3/C6/C7
  • Coating: TiCN/Al2O3/TiCN/TiN
  • Coating Process: CVD
  • Included Angle ( ): 90
  • Insert Hand: Right Hand
  • Length (mm): 19.00
  • Length (Decimal Inch): 0.7480
  • Maximum Depth of Cut (mm): 1.25
  • Maximum Depth of Cut (Decimal Inch): 0.0492
