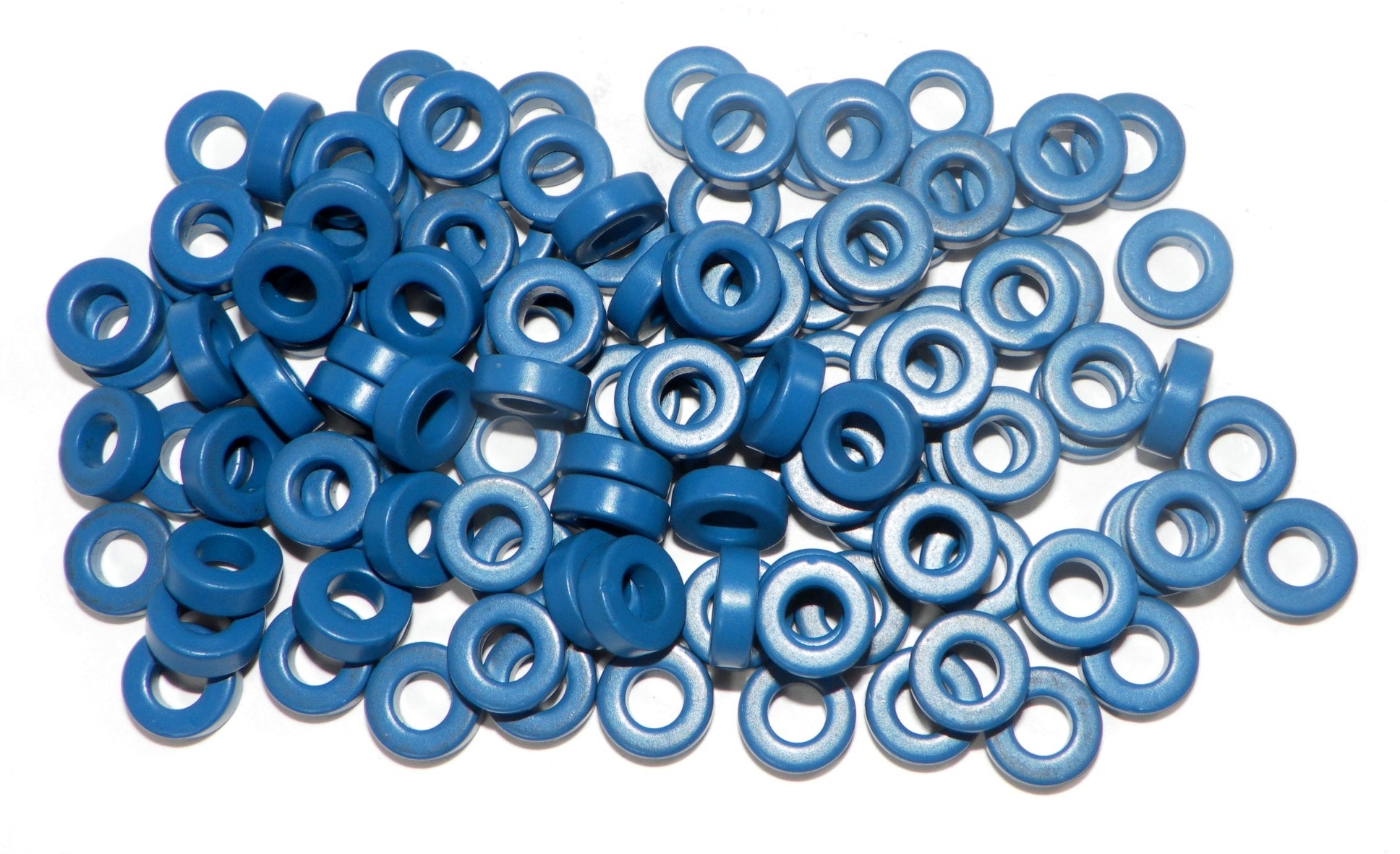

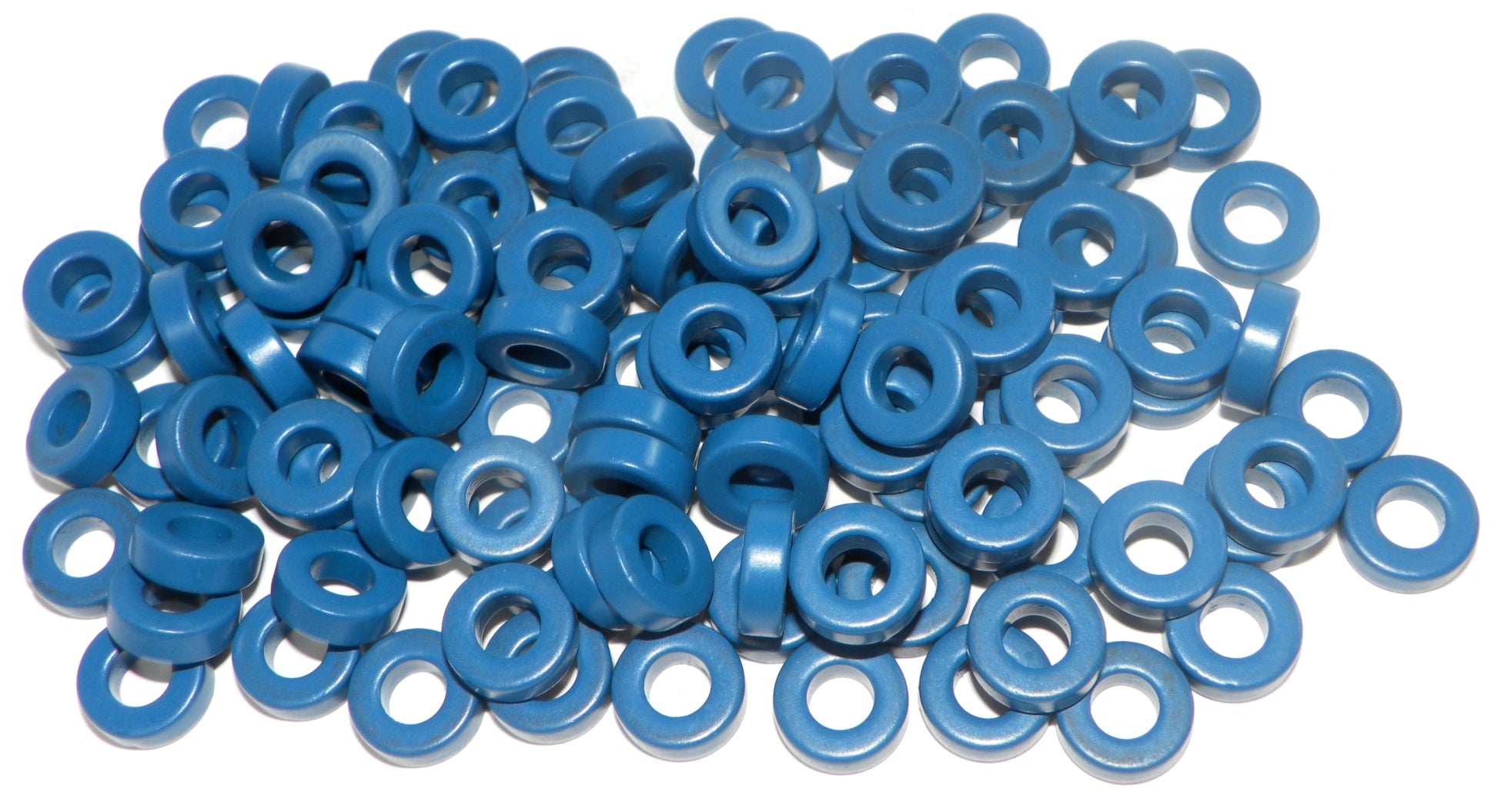

Steward 35T0375-10G Blue Toroid Ferrite Core 10.55mm OD 3.73mm ID (100 Pcs)
Steward 35T0375-10G Blue Toroid Ferrite Core 10.55mm OD 3.73mm ID (100 Pcs)
Steward 35T0375-10G Blue Toroid Ferrite Core 10.55mm OD 3.73mm ID (100 Pcs)
Steward 35T0375-10G Blue Toroid Ferrite Core 10.55mm OD 3.73mm ID (100 Pcs)

Steward 35T0375-10G Blue Toroid Ferrite Core 10.55mm OD 3.73mm ID (100 Pcs)

Shipping calculated at checkout.

Product Description

The Steward 35T0375-10G Ferrite Core is a high-performance toroidal core designed for EMI suppression and inductive applications. Made from premium ferrite material, it offers stable magnetic properties and excellent performance across a wide frequency range. Its ungapped design and high initial permeability (µi 5000) make it ideal for transformers, chokes, and noise filters in electronic circuits.

Key Features

  • Brand: Steward Ferrites / Laird Technologies
  • Model Number: 35T0375
  • Part Numbers: 35T0375-10G, 35T0375-10H
  • Core Type: Toroid
  • Color: Blue
  • Shape: Cylindrical
  • Inductance Factor (Al): 2.214 µH
  • Tolerance: ±20%
  • Gap: Ungapped
  • Initial Permeability (µi): 5000
  • Height: 4.07 mm
  • Outer Diameter: 10.55 mm
  • Inner Diameter: 3.73 mm
  • Material: Ferrite
  • Quantity: 100 Pieces
  • Application: EMI suppression, inductors, transformers
